Anchor Winch Monitoring and Control
Anchor winch monitoring provides operators with highly accurate measurements of a number of required anchor line parameters.

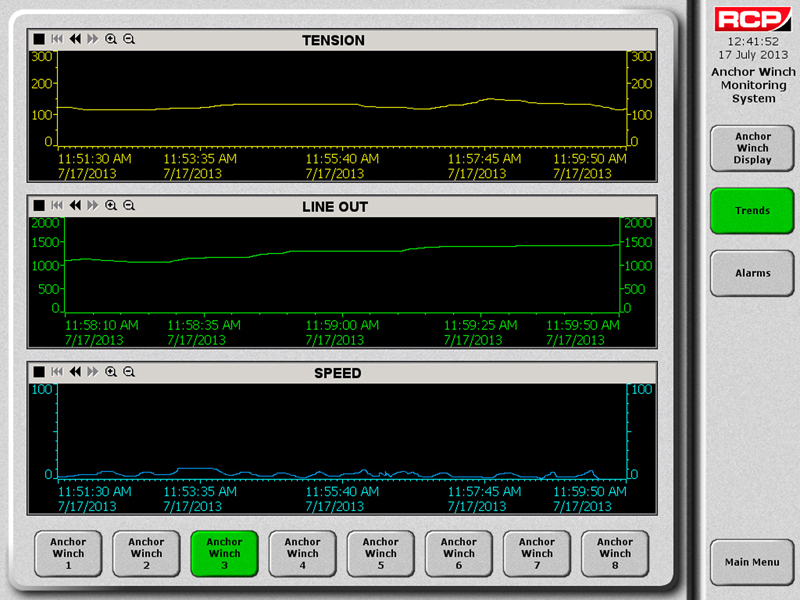

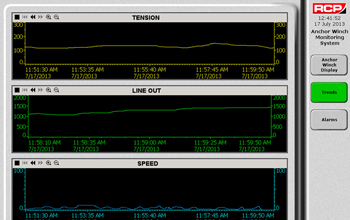

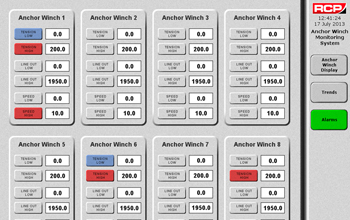

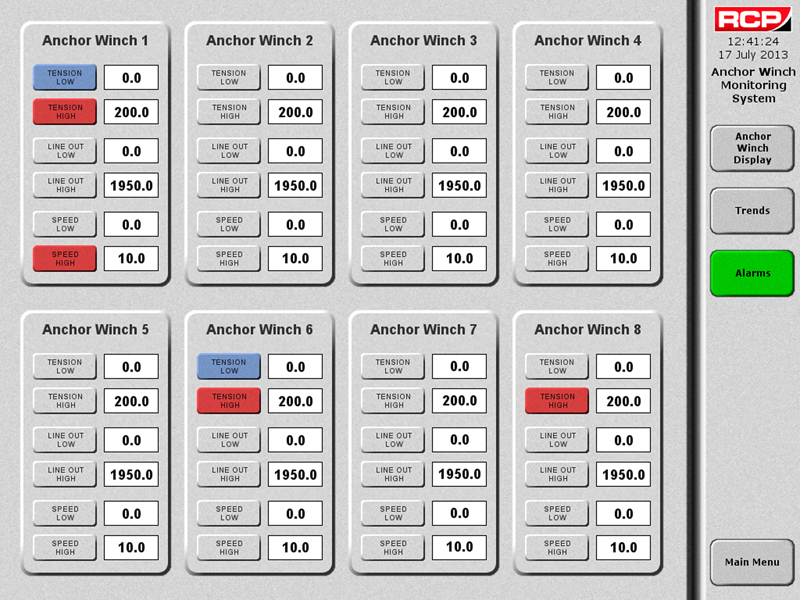

As can be seen on the system graphic, a wide range of sensor inputs can be utilised while sensor set-up and alarm set-points can be easily accessed and modified through the main HMI maintenance screen itself.

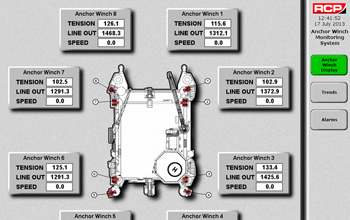

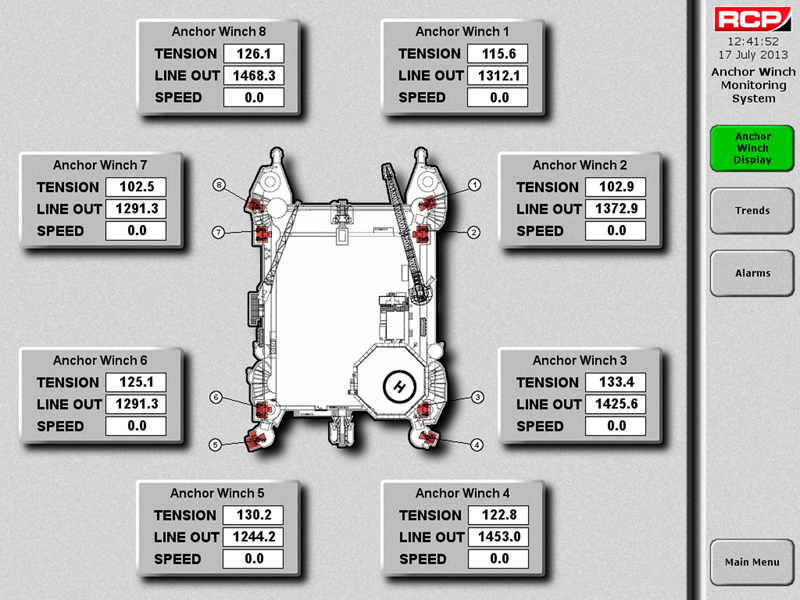

A simplified overview graphic of the anchor winches information is used to offer precise information of the system allowing for rapid intervention if required.
The System Monitors:
• Line Tension
• Line Pay-Out length
• Pay-Out / Reel in Rate
• Alarms set points
Mechanical Running Line Monitor
The mechanical running line monitor (RLM) offers by far the simplest RLM setup on the market. It is ideal for the rapid measurement of tension on any wireline; the unit can also be supplied with length measurement capabilities to measure line pay-out.
Features
• All mechanical construction – no electronics
• Stainless steel plates
• Load readings up to 100 metric tonnes
• Wire diameter capacity of 12-70mm
• Payout readings of up to 9999m
• Highly accurate readings
• Small and lightweight by comparison to other RLM
• Simple setup and ease of Installation
Options
• Length Measurement
• Remote reading
Model |
RLM 20 |
RLM 100 |
Load Measurement |
2-20 t |
20-100 t |
Wire Diamter |
12-32 mm |
30-70 mm |
Length Measurement |
Optional |
Optional |
Length Capacity |
9999 m |
9999 m |
Load Accuracy |
+/- 0.3% |
+/- 0.3% |
Sensor Weight |
26 Kg |
79 Kg |
Sensor Dimensions |
720 x 200 x 540 mm |
1350 x 200 x 715 mm |
